所屬分類： 通孔滑環
瀏覽次數： 次
發布時間： 2025-01-06 19:30:59
轉子法蘭安裝，通孔直徑為12.7mm (適用于<=12.7mm)>
*注：如需<12.7mm>

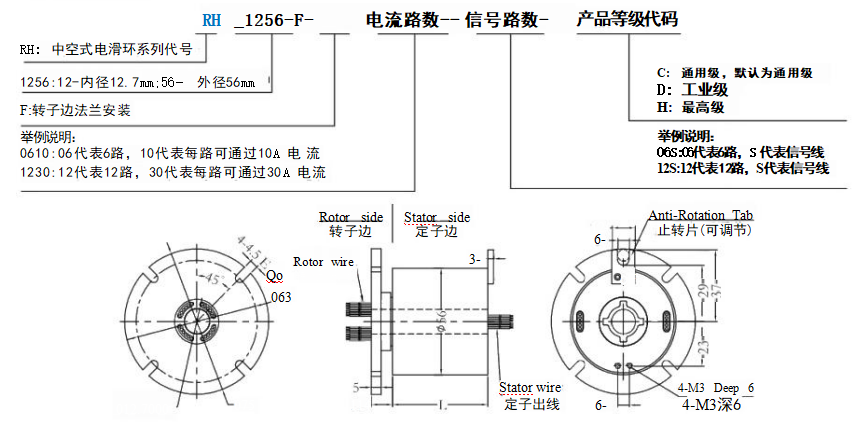

訂購型號說明
RH1256F系列過孔式滑環選型表
| 型號 | 線路數 | 長度L(mm) | 型號 | 線路數 | |||
| 10A | 信號或0~5A | 10A | 信號或0~5A | ||||
| RH1256F-02S | 0 | 2 | 27 | RH1256F-1010-08S | 10 | 8 | 71.5 |
| RH1256F-0210 | 2 | 0 | 27 | RH1256F-1210-06S | 12 | 6 | 71.5 |
| RH1256F-03S | 0 | 3 | 30 | RH1256F-1410-04S | 14 | 4 | 71.5 |
| RH1256F-0310 | 3 | 0 | 30 | RH1256F-1610-02S | 16 | 2 | 71.5 |
| RH1256F-06S | 0 | 6 | 38 | RH1256F-24S | 0 | 24 | 88.5 |
| RH1256F-0210-04S | 2 | 4 | 38 | RH1256F-0410-20S | 4 | 20 | 88.5 |
| RH1256F-0410-02S | 4 | 2 | 38 | RH1256F-0610-18S | 6 | 18 | 88.5 |
| RH1256F-0610 | 6 | 0 | 38 | RH1256F-1210-12S | 12 | 12 | 88.5 |
| RH1256F-12S | 0 | 12 | 55 | RH1256F-1810-06S | 18 | 6 | 88.5 |
| RH1256F-0210-10S | 2 | 10 | 55 | RH1256F-2410 | 24 | 0 | 88.5 |
| RH1256F-0310-09S | 3 | 9 | 55 | RH1256F-30S | 0 | 30 | 104 |
| RH1256F-0610-06S | 6 | 6 | 55 | RH1256F-0210-28S | 2 | 28 | 104 |
| RH1256F-0810-04S | 8 | 4 | 55 | RH1256F-0410-26S | 4 | 26 | 104 |
| RH1256F-1010-02S | 10 | 2 | 55 | RH1256F-0610-24S | 6 | 24 | 104 |
| RH1256F-1210 | 12 | 0 | 55 | RH1256F-36S | 0 | 36 | 122 |
| RH1256F-18S | 0 | 18 | 71.5 | RH1256F-0410-32S | 4 | 32 | 122 |
| RH1256F-0210-16S | 2 | 16 | 71.5 | RH1256F-0610-30S | 6 | 30 | 122 |
| RH1256F-0410-14S | 4 | 14 | 71.5 | RH1256F-42S | 0 | 42 | 140 |
| RH1256F-0610-12S | 6 | 12 | 71.5 | RH1256F-0410-38S | 4 | 38 | 140 |
| RH1256F-0810-10S | 8 | 10 | 71.5 | RH1256F-48S | 0 | 48 | 156 |
*注 ：N個10A電流環并起來可作為1路N*10A電流使用；比如：2環10A并起來可以作為1路20A使用，10A 和信號(5A) 可以任意組合，詳細請發詢盤，可在標準產品上定制
