RH2586F系列
轉子帶法蘭，孔徑25.4mm (適用于<=25 .4mm="">

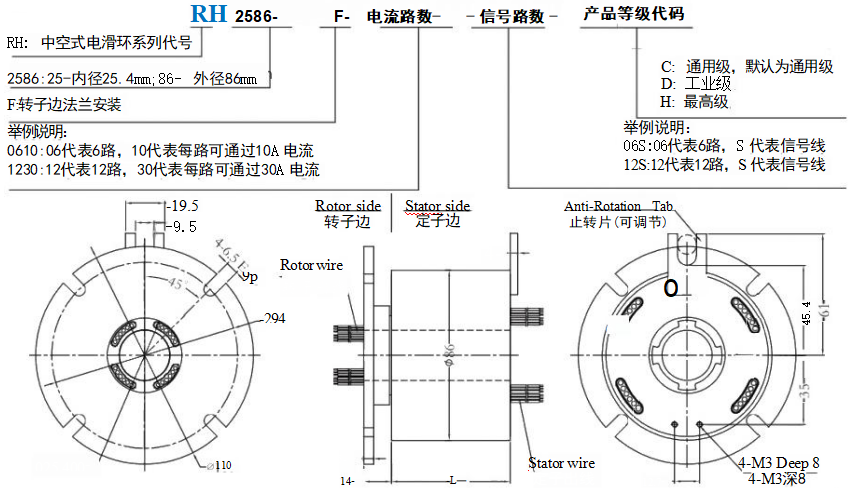

訂購型號說明
標準型號選型表
| 型號 | 線路數 | 長度L(mm) | 型號 | 線路數 | 長度L(mm) | ||
| 10A | 信號或0~5A | 10A | 信號或0~5A | ||||
| RH2586F-02S | 0 | 2 | 32 | RH2586F-1210-12S | 12 | 12 | 120 |
| RH2586F-0210 | 2 | 0 | 32 | RH2586F-1810-06S | 18 | 6 | 120 |
| RH2586F-03S | 0 | 3 | 36 | RH2586F-2410 | 24 | 0 | 120 |
| RH2586F-0310 | 3 | 0 | 36 | RH2586F-30S | 0 | 30 | 144 |
| RH2586F-06S | 0 | 6 | 48 | RH2586F-0610-24S | 6 | 24 | 144 |
| RH2586F-0210-04S | 2 | 4 | 48 | RH2586F-1210-18S | 12 | 18 | 144 |
| RH2586F-0410-02S | 4 | 2 | 48 | RH2586F-1810-12S | 18 | 12 | 144 |
| RH2586F-0610 | 6 | 0 | 48 | RH2586F-2410-06S | 24 | 6 | 144 |
| RH2586F-12S | 0 | 12 | 72 | RH2586F-3010 | 30 | 0 | 44 |
| RH2586F-0210-10S | 2 | 10 | 72 | RH2586F-36S | 0 | 36 | 168 |
| RH2586F-0310-09S | 3 | 9 | 72 | RH2586F-0610-30S | 6 | 30 | 168 |
| RH2586F-0610-06S | 6 | 6 | 72 | RH2586F-1210-24S | 12 | 24 | 168 |
| RH2586F-0810-04S | 8 | 4 | 72 | RH2586F-3610 | 36 | 0 | 168 |
| RH2586F-1010-02S | 10 | 2 | 72 | RH2586F-42S | 0 | 42 | 192 |
| RH2586F-1210 | 12 | 0 | 72 | RH2586F-0610-36S | 6 | 36 | 192 |
| RH2586F-18S | 0 | 18 | 96 | RH2586F-1210-30S | 12 | 30 | 192 |
| RH2586F-0210-16S | 2 | 16 | 96 | RH2586F-48S | 0 | 48 | 216 |
| RH2586F-0410-14S | 4 | 14 | 96 | RH2586F-0610-42S | 6 | 42 | 216 |
| RH2586F-0610-12S | 6 | 12 | 96 | RH2586F-1010-38S | 10 | 38 | 216 |
| RH2586F-0810-10S | 8 | 10 | 96 | RH2586F-1210-36S | 12 | 36 | 216 |
| RH2586F-1010-08S | 10 | 8 | 96 | RH2586F-1810-30S | 18 | 30 | 216 |
| RH2586F-1210-06S | 12 | 6 | 96 | RH2586F-2410-24S | 24 | 24 | 216 |
| RH2586F-1410-04S | 14 | 4 | 96 | RH2586F-60S | 0 | 60 | 264 |
| RH2586F-1610-02S | 16 | 2 | 96 | RH2586F-0610-54S | 6 | 54 | 264 |
| RH2586F-24S | 0 | 24 | 120 | RH2586F-1010-50S | 10 | 50 | 264 |
| RH2586F-0410-20S | 4 | 20 | 120 | RH2586F-1210-48S | 12 | 48 | 264 |
| RH2586F-0610-18S | 6 | 18 | 120 | RH2586F-72S | 0 | 72 | 312 |
*注：N 個10A電流環并起來可作為1路N*10A 電流使用；比如：2環10A并起來可以作為1路20A使用，10A 和信號(5A) 可以任意組合，詳細請咨詢，可在標準產品上定制
